This machine is a packaging machine that integrates automatic carton sealing and strapping. It can be used with automated packaging lines. It can automatically seal tapes up and down and tie them in multiple ways to achieve unmanned packaging in the backend. This sealing and packing machine is widely used in mass production industries such as printing, painting, greeting cards, photo albums, photo frames, medicine, electronics, daily chemicals, and cosmetics.
| project | parameter |
| transfer speed | 6 boxes/min |
| M large packaging size | L600×W500×H500mm |
| M small package size | L200×W150×H150mm |
| supply power | 220/380V、 1ф -3ф 、 50/60Hz |
| consumption function | 1000W |
| Applicable gas source | 6kg/cm² |
| Suitable for PP belt | 9、12、16*0.5-1.0mm |
| Applicable tape | W48mm/60mm/75mm choose one to use |
| Machine size | L1620×W1420×H1550 |
| Machine weight | 400KG |
1. Performed simultaneously with the strapping machine, fast, efficient and small in size
2. Adopt PLC automatic program control, simple and convenient operation, low failure rate
3. Imported photoelectric detection is used to detect the bundling position of cartons, which can automatically bundle 1-3 lanes.
4. Equipped with blade protection device. Avoid accidental stabbing during operation
5. It can be operated as a stand-alone machine or used in conjunction with automated packaging lines.

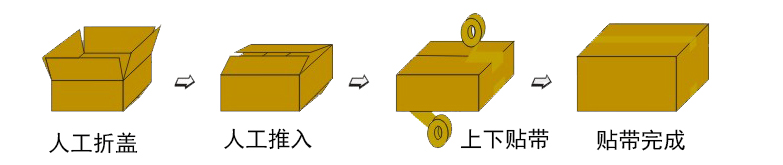

Sealing and packaging process:
